BTF-LIGHTING LM052 Tuya Zigbee 3.0 LED Controller - 5-in-1 RGB RGBW RGBCCT PWM Dimmer for LED Strips, Compatible with Amazon Echo Plus/4th Gen, Philips Hue Bridge & Smart Home Systems (WR01RF WR02RF) - Perfect for Home Theater Lighting, Bedroom Ambience & DIY Projects

$20.24

$26.99

Safe 25%

BTF-LIGHTING LM052 Tuya Zigbee 3.0 LED Controller - 5-in-1 RGB RGBW RGBCCT PWM Dimmer for LED Strips, Compatible with Amazon Echo Plus/4th Gen, Philips Hue Bridge & Smart Home Systems (WR01RF WR02RF) - Perfect for Home Theater Lighting, Bedroom Ambience & DIY Projects

$20.24

$26.99

25% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

15 people viewing this product right now!

SKU: 74779269

Guranteed safe checkout

Description

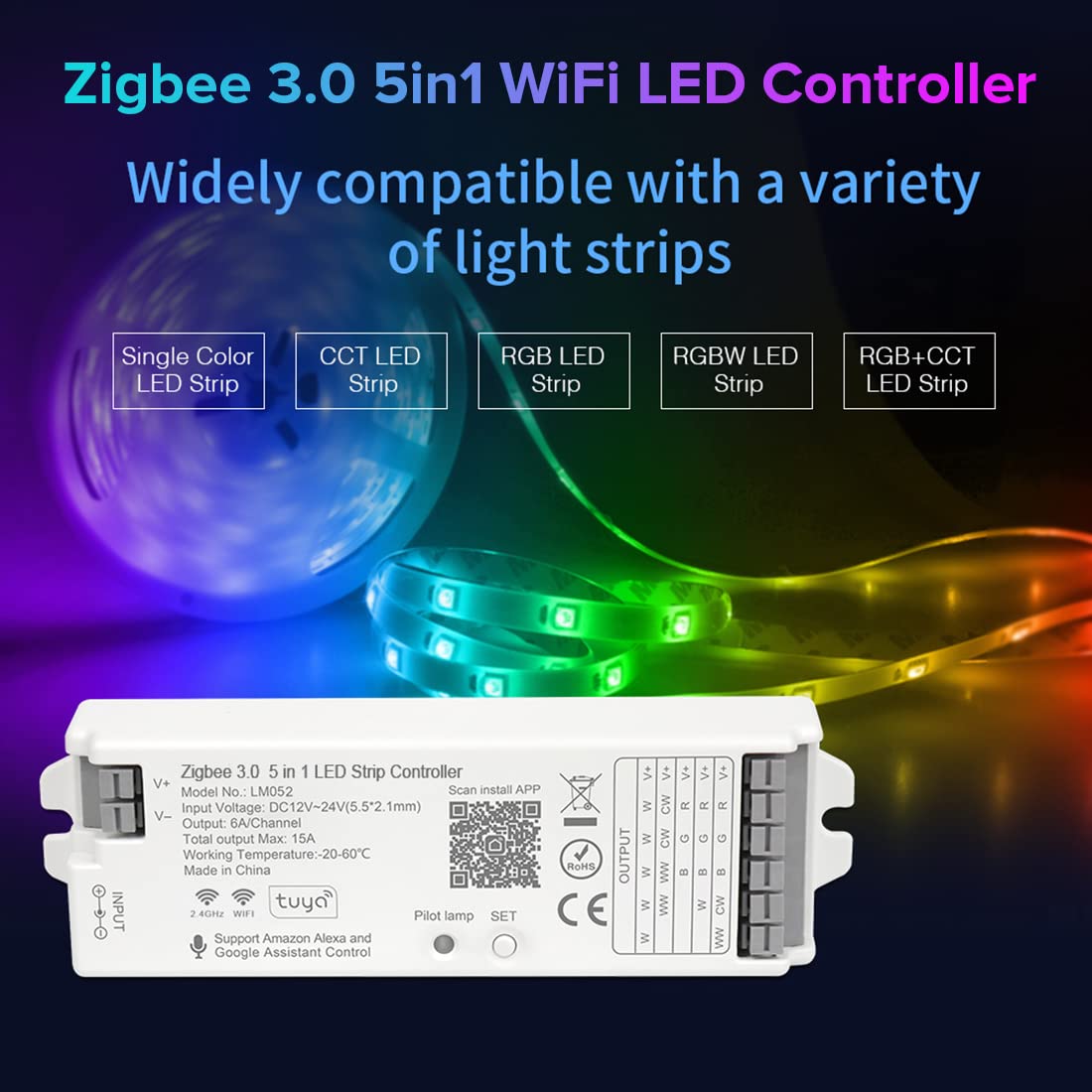

Single Color (Monochrome)-2 Pin LED Parameters: Model: LM052Product Name: 5 IN 1 Zigbee 3.0 LED ControllerItem size(LxWxH):122x38x22(mm) / 4.9x1.5x0.9(in)RF: 2.4GHzControl Distance: 30m (98.42ft)APP name: Smart Life or Tuya Smart Support Third Part Voice Control : Echo Plus, Alexa and Google Home.Input voltage: DC12V or DC24V (It depends on what LED strip you use)Output: 6A/Channel (Total Output Max 15A) 12V180W 24V360WWorking Temperature: -20-60℃Compatible LED strip: FCOB COB 3014 5630 3528 2835 5050RGB 5050RGBW 5050RGB+CCT 5050 CCT etcMonochrome+CCT+RGB+RGBW+RGBCCT 5in1Compatible Remote control : Remote control series:RC01RFB/RC02RFB/RC03RFB/RC04RFB/RC05RFB etc RF remotePanel series: WR01RF WR02RF Panel remote CCT Color (Dual white=Warm white+Cool White)-3 Pin LED Attention: The working voltage is DC12 or 24V, the controller will be broken if the voltage is higher than 24V.Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of the cathode and anode.Please don't use controller around the metal area and high magnetic field, otherwise, it will badly affect the control distance Package included: 1x 5 in 1 Zigbee 3.0 WiFi Controller (The LED strip, remote controller ,Gateway or power supply is not included) RGB/RGBW/RGBCCT LED-4pin 5pin 6pin LED RGB RGBW RGBCCT RGB LED Strip RGB+Warm White or RGB+Cool White LED stripRGBCCT=RGB+CCT Button fixation-Fast, Firm and Simple SET key-Pilot Lamp Different Pilot Lamp color 1. Long press SET key 3 seconds ,Pilot lamp pureple blink 3 times-Link mode or Unlink mode 2.Short press SET key , White-single color LED strip ,Yellow-CCT LED Strip, Red-RGB LED strip ,Green-RGBW LED strip ,Blue-RGB+CCT LED strip Single Color RF Remote CCT RF Remote RGB/RGBW RF Remote RGBCCT RF Remote WiFi 5in1 Bluetooth Mesh 5in1 Controller Buying Options Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews 4.3 out of 5 stars 644 4.3 out of 5 stars 644 4.3 out of 5 stars 644 4.3 out of 5 stars 644 4.3 out of 5 stars 644 4.0 out of 5 stars 143 Price $22.09$22.09 $22.09$22.09 $22.09$22.09 $22.09$22.09 $22.94$22.94 — no data Group Control ✓ ✓ ✓ ✓ ✓ ✓ Controller Work with Bluetooth/WiFi/Zigbee Controller Work with Bluetooth/WiFi/Zigbee Controller Work with Bluetooth/WiFi/Zigbee Controller Work with Bluetooth/WiFi/Zigbee Controller 2.4GHz WiFi Bluetooth Mesh Gateway no data no data no data no data No need No Need APP no data no data no data no data Smart Life/Tuya Smart Smart Life/Tuya Smart Google Home/Alexa no data no data no data no data ✓ Need Tuya Gateway

Shipping & Returns

For all orders exceeding a value of 100USD shipping is offered for free.

Returns will be accepted for up to 10 days of Customer’s receipt or tracking number on unworn items. You, as a Customer, are obliged to inform us via email before you return the item.

Otherwise, standard shipping charges apply. Check out our delivery Terms & Conditions for more details.

Features

【5 in 1 Tuya Zigbee 3.0 Controller】LM052=C01Z+C02Z+C03Z+C04Z+C05Z . C01Z=Single Color C02Z=CCT (Dual White) C03Z=RGB C04Z=RGBW C05Z=RGBCCT. This Controller control Dimming, CCT, RGB, RGBW, RGBCCT,2pin 3pin 4pin 5pin 6pin PWM LED strip string bulb lamp. Switch mode by one setting button. Power 6A/Channel Total output max 15A .DC12V 180W max. DC24V 360W max.

【Support Echo Plus,Echo(4th Gen),Philip H-UE and Home-Kit Gateway】Support Echo Plus,Echo(4th Gen),Philip H-UE and Home-Kit.Compatible with general Zigbee bridge.More stable and convenient connection with Zigbee Gateway.Work with Tuya Bluetooth/WiFi Dual-Mode Gateway,it can Support Third Part Voice Control like Alexa,Google Home.Package content 1X LED controller 1X User manual.Can't support Smart-Things.

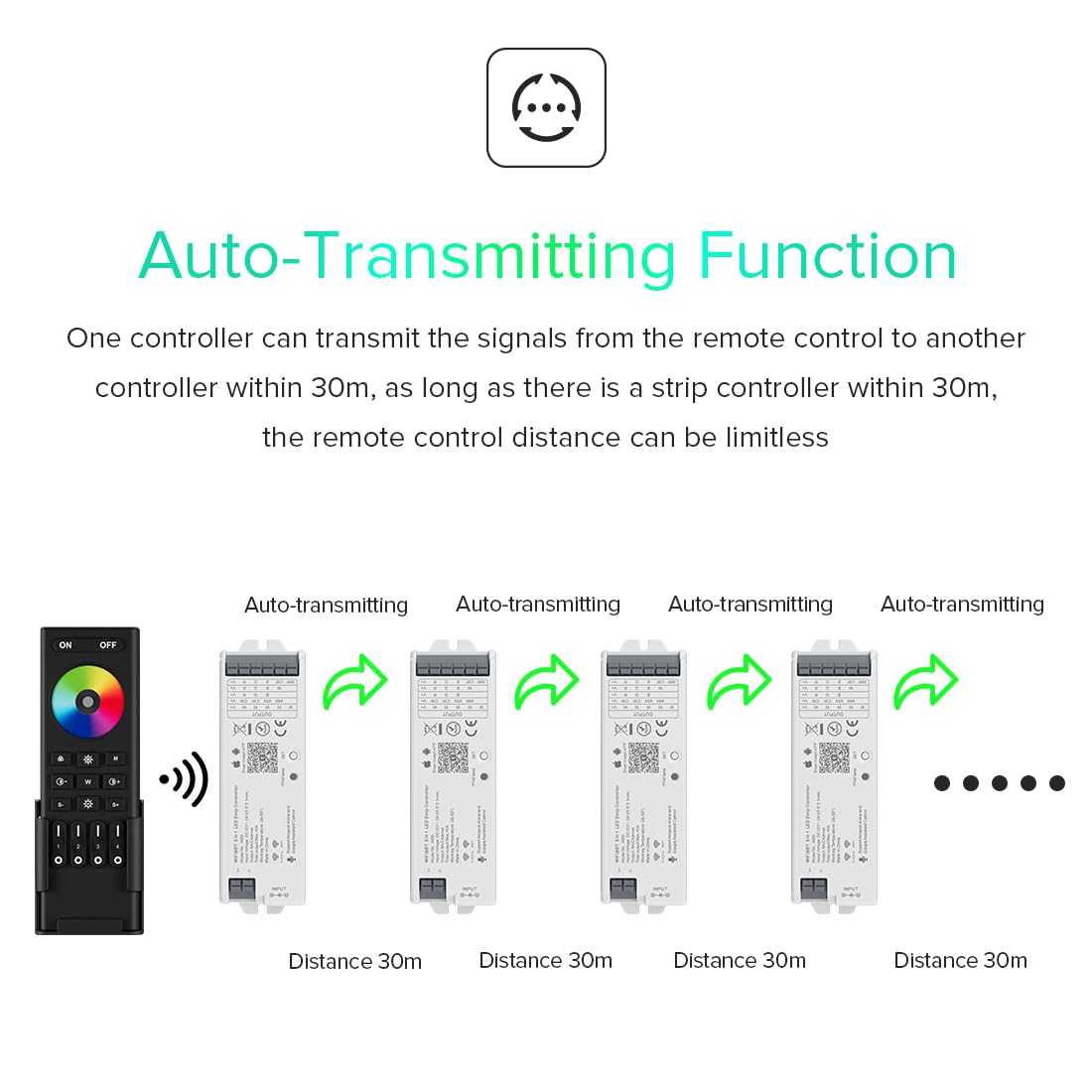

【Auto-transmitting function】One controller can transmit the signal from the remote control to the another controller within 99ft(30 meters). As long as there is a LED strip controller within 99ft(30 meters), the remote control distance can be limitless.Auto-Synchronization Function.Different controllers can work synchronously when they are started at different times, controlled by the same remote control at the same dynamic mode and with the same speed.

【Multiple functions】Group Control. Device sharing,tap-to-run,automation,16 millions of colors,DualWhite,Dim brightness.Memory function in case of power-down.DC12V DC24V Power Supply ,DC12V LED strip please must use DC12V Power supply .

【2 control methods】1stCompatible 2.4GHz RF Remote WR01RF,WR02RF,RC01RFB,RC02RFB,RC03RFB,RC04RFB,RC05RFB. 2ndEcho Plus,Echo(4th Gen),Philip H-UE,Home-Kit Gateway or Tuya Bluetooth/WiFi Dual-Mode Gateway etc.

Reviews

*****

Verified Buyer

I bought this along with aBTF-LIGHTING AC100-240V to DC12V6A power supply and a BTF-LIGHTING 5050 RGBW LED strip, after lots of research and a certain amount of educated guessing, and that combination worked flawlessly for me out of the box. The remainder of this review assumes you have that specific combination of components.The LEDs come with a cable that connects the pin sockets on the end of the strip to individual wires suitable for insertion into the controller. When inserting each wire, pay attention to the wire color! The order of red and green is switched on the controller relative to the pin order on the LED strip, so you'll need to cross-wire the wires. The colors of the wires in the cable that comes with the LED strip matches the pin order on the strip, so just attach the red wire to the "R" socket on the controller and the green wire to the "G" socket, and you'll be fine (unless you're red-green colorblind, in which case, best of luck!). The controller also comes with two sockets marked V+ (power). Attach the black wire to one of them and leave the other one empty. This advice probably applies to the RGBW controller that has a remote control too, but I can't say for sure.If nothing happens when you plug it in, make sure the plug between the wall socket and the power brick is firmly inserted. It took a fair bit of persuasion for me to get it fully seated.The controller comes with an instruction sheet that assumes you're using a specific third-party Zigbee hub and smart home app, so I mostly ignored it. The only relevant instruction is to press the button on the controller four times in quick succession to make it register itself with your Zigbee hub. Once I did that, it immediately showed up in my name-brand home app, the name of which I will not mention because the company seem to dislike it when people mention using third-party components with their hub, and I want to avoid unnecessary Hue and cry. Suffice it to say it works great with that system, though.Inserting the wires into the individual sockets was a little fiddly and requires a small straight-slot screwdriver of the sort you might get with a glasses kit. I was honestly a little surprised when I turned it on and it all worked, because I couldn't push the wires very far into the sockets. But they stayed in place when I screwed them down, and apparently that's enough. Using the cable that came with the LED strip, I didn't have to strip the wires at all to make that work.I was honestly not expecting the controller to just work on the first try, so I was very pleased when it did!
